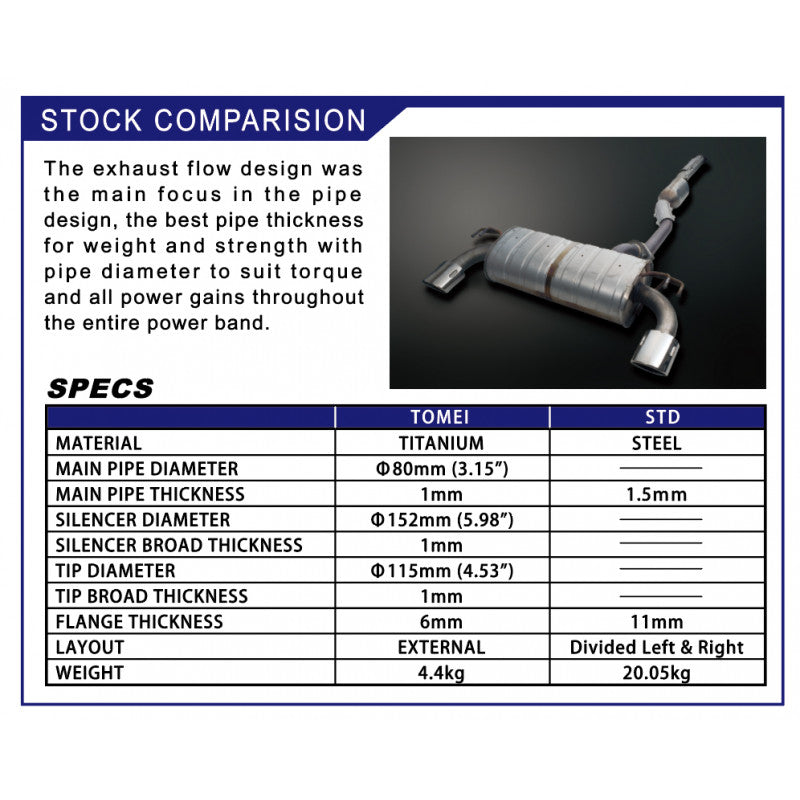

COMPARISION TO STOCK

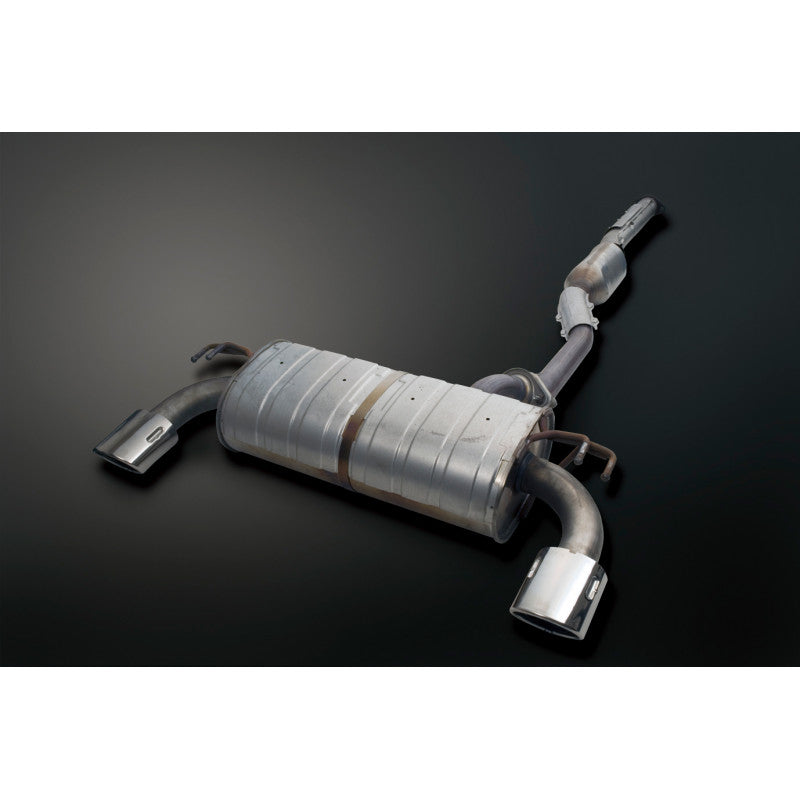

â–²OEM
Designed for results, not too thick or thin. For best overall power gains, weight reductions and value for money.
| TOMEI | OEM | |
| MATERIAL | TITANIUM | STEEL |
| MAIN PIPE DIAMETER |
3.15inch (80mm) |
|
| MAIN PIPE THICKNESS |
1.0mm | 1.5mm |
| SILENCER DIAMETER |
5.98inch (152mm) |
|
| SILENCER THICKNESS |
1.0mm | |
| TIP DIAMETER |
4.53inch (115mm) |
|
| TIP THICKNESS |
1.0mm | |
| FLANGE THICKNESS |
6.0mm | 11.0mm |
| LAYOUT | Single Tip | Twin Pipe Tip |
| WEIGHT | 9.8lbs (4.4kg) |
44.3lbs (20.05kg) |
34.5lbs
(15.65kg)
Weight Reduction!!

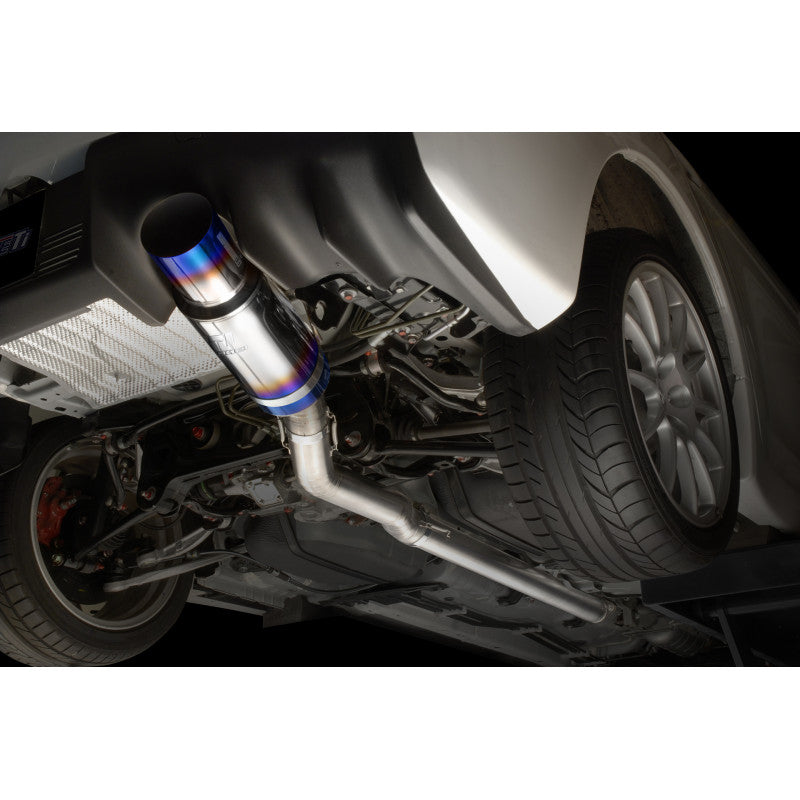

 RACING LAYOUT
The racing layout has been designed with minimal bends for best exhaust gas flow for best performance gains.
 3 SECTION PIPE ASSEMBLY
The conventional style flange was not used this time to help reduce weight even further. The use of the springs and clamps eliminates the need for gaskets as well.
HIGH QUALITY
Only a racing style Titanium muffler can deliver the unique true race car exhaust sound that you are used to hearing on a high end pro race car.
BEST VALUE FOR MONEY PERFORMANCE
The design targets were strictly for performance use and for the best value for money for our end users.

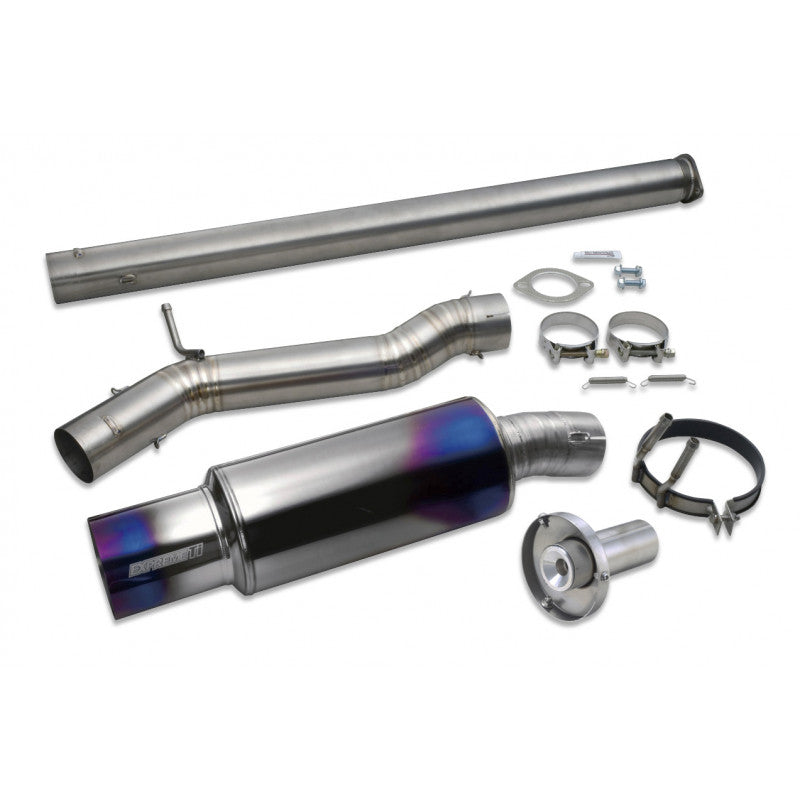

KIT CONTENTS
PART No. TB6090-MT02A
- SILENCER
- MAIN PIPE A
- MAIN PIPE B
- GASKET
- FLANGE BOLT M12 x P1.25 L=35mm
- CLAMP BAND
- SPRINGS
- SILENCER BANDS
- FLANGE BOLT M8
- FLANGE NUT M8
- BAND RUBBER t=3.0mm L=470mm
- SOUND REDUCER ver.2
- BOLT SMOOTH PASTE
